10-30 keV NEGATIVE IONS IMPLANTATION CHAMBER

Implantation conditions:

  • Negative ions: from H‑ to As‑

  • Ions Energy: 10keV - 30keV

  • Implantation area: up to 5x5 cm

  • 5-axis sample positioning system

  • Possibility of in situ observation of sample state during implantation process

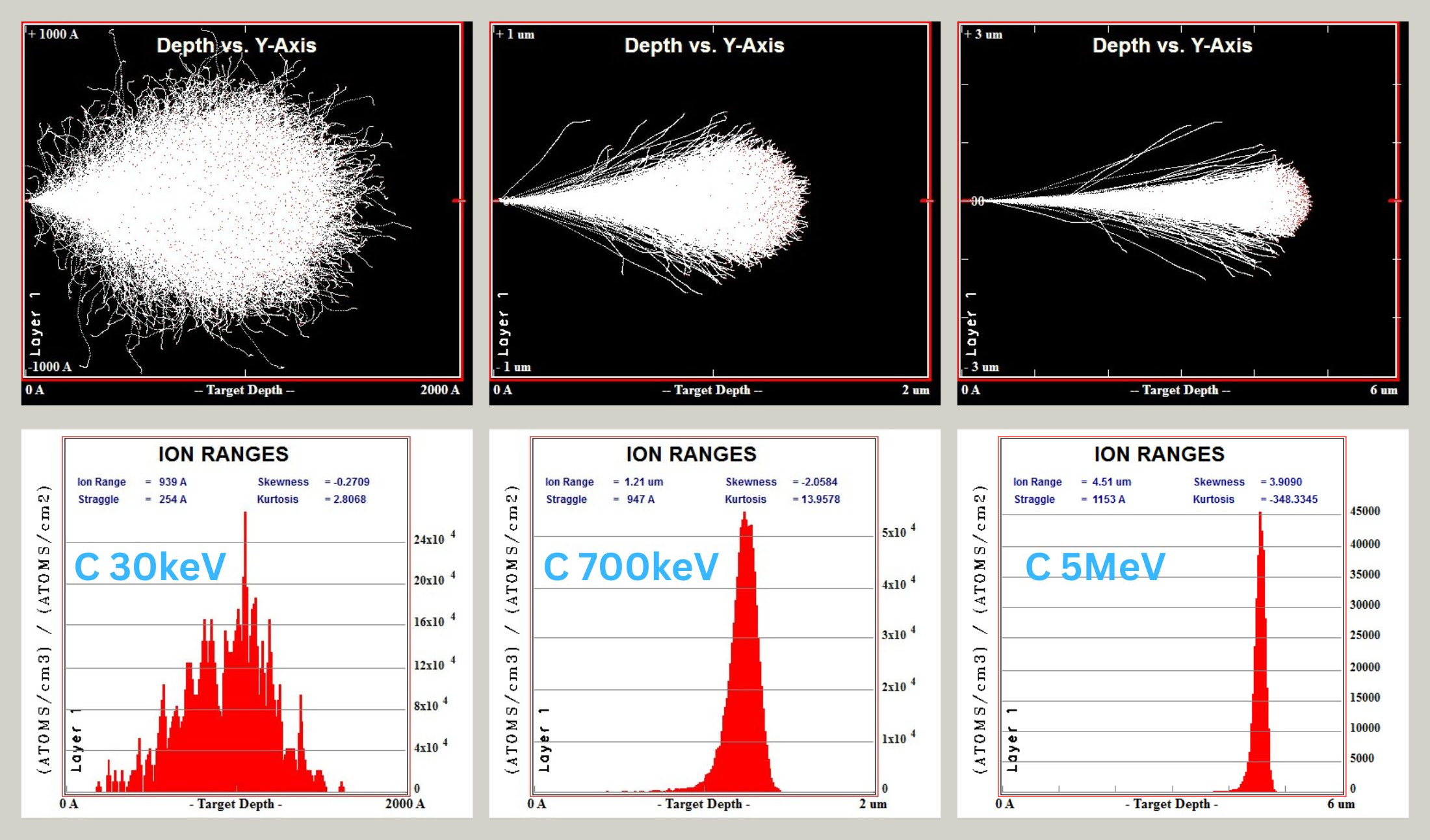

Different C ions penetration depth to the hexagonal Boron Nitride (hBN) depending on their energy:

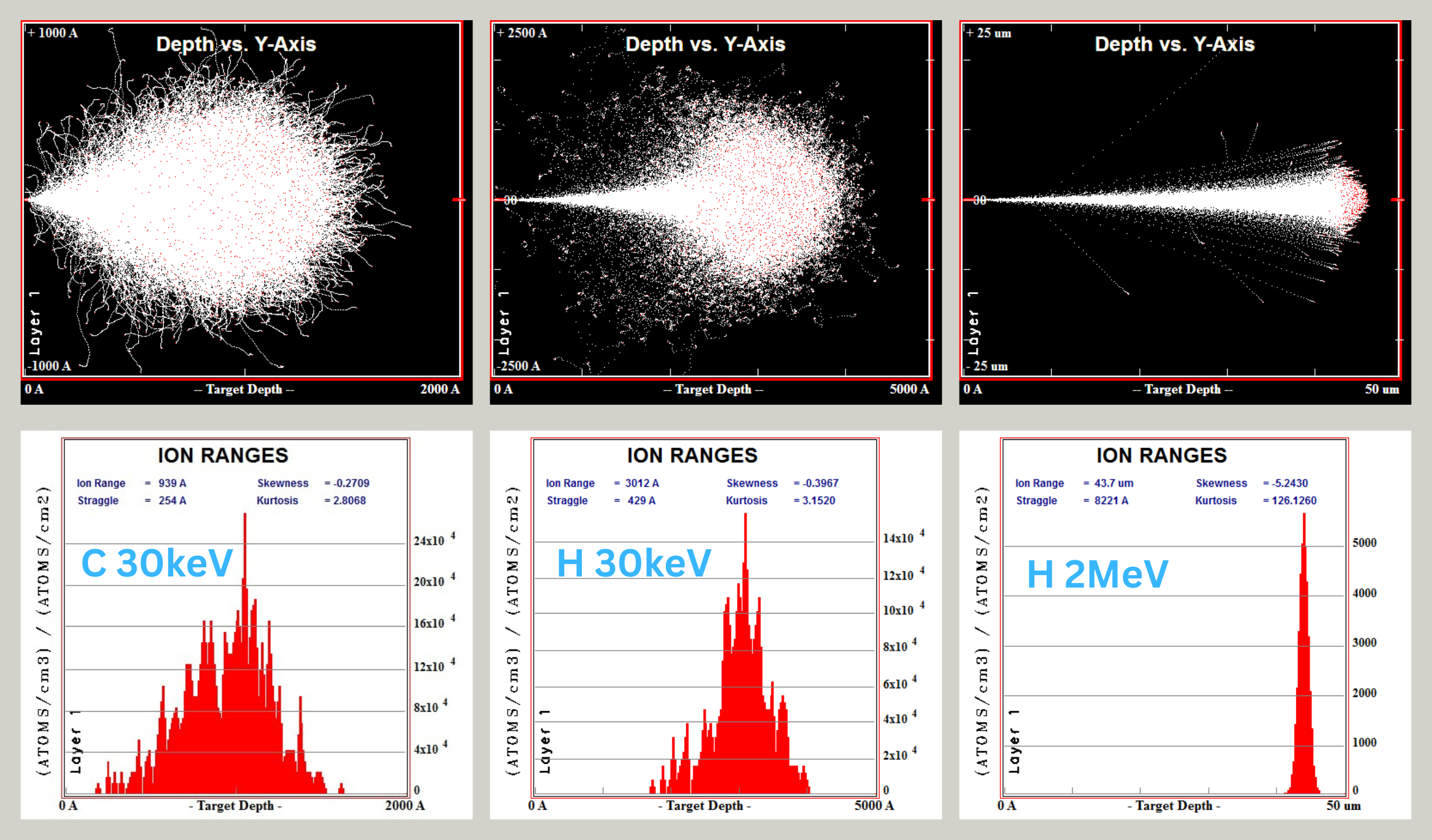

Different H & C ions penetration depth to the hexagonal Boron Nitride (hBN) depending on their energy during implantation:
